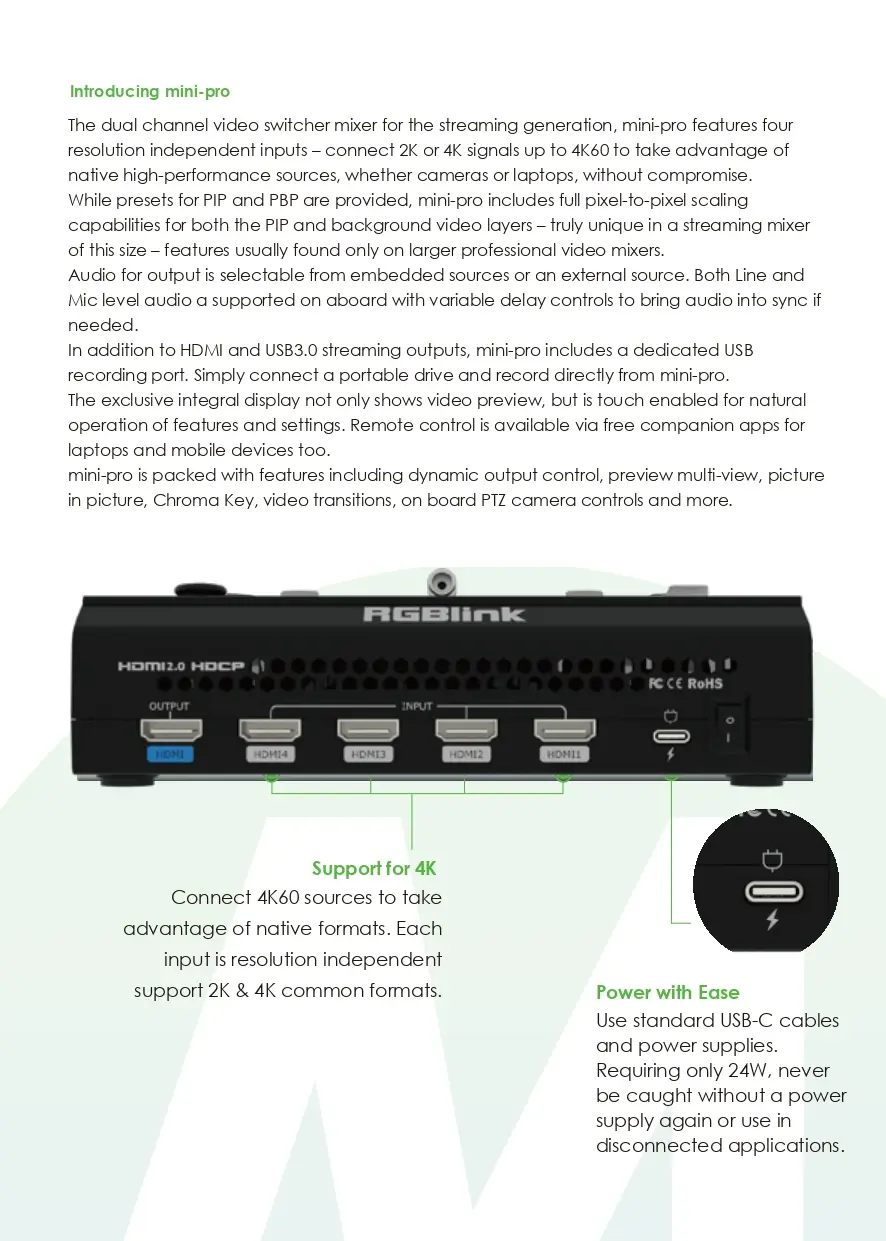

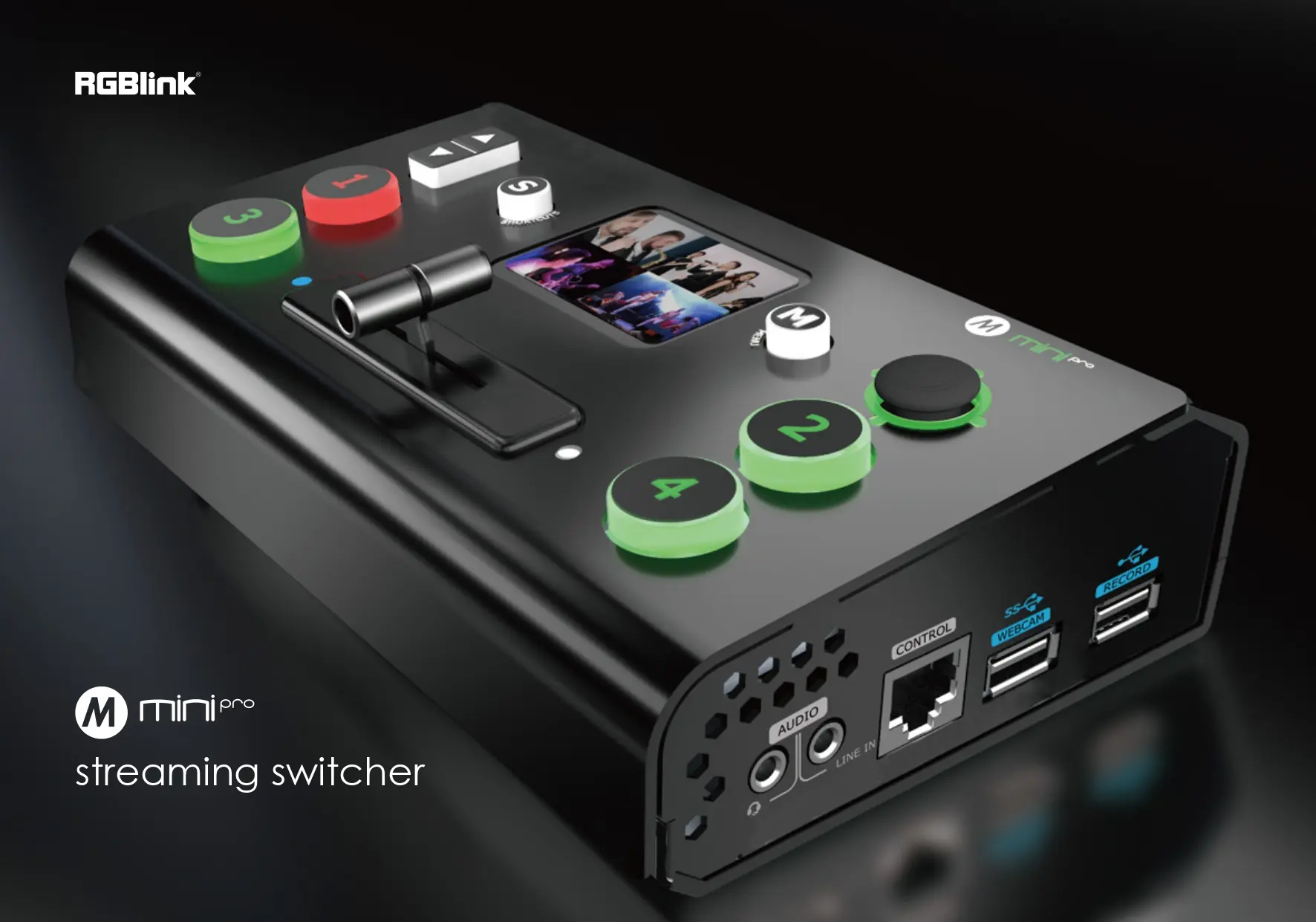

The dual channel video switcher mixer for the streaming generation, mini-pro features four resolution independent inputs – up to full 4K60 to take advantage of native high-performance sources, whether cameras or laptops, without compromise. While presets for PIP and PBP are provided, mini-pro includes full pixel-to-pixel scaling capabilities for both the PIP and background video layers – truly unique in a streaming mixer of this size – features usually found only on larger professional video mixers.
Audio for output is selectable from embedded sources or an external source. Both Line and Mic level audio a supported on board with variable delay controls to bring audio into sync if needed.

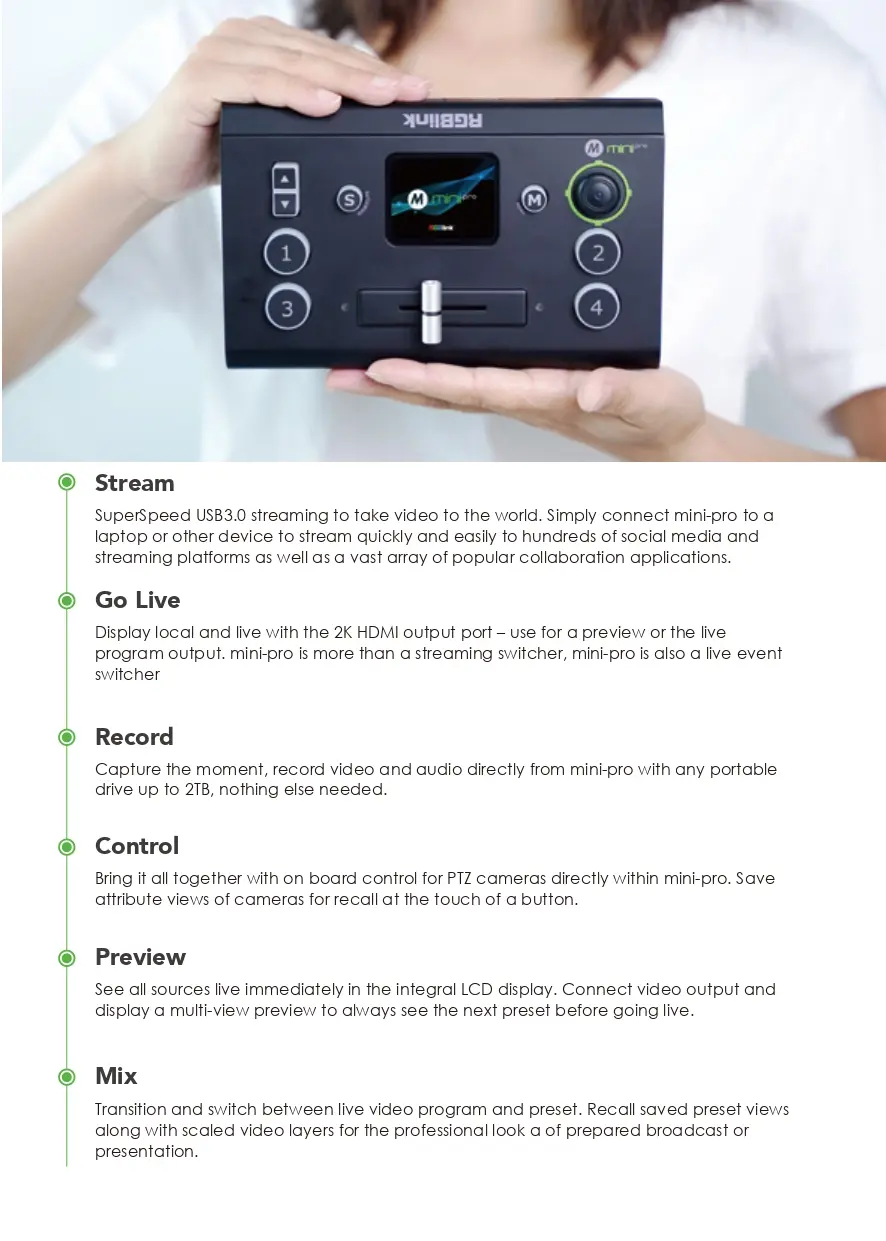

In addition to HDMI and USB3.0 streaming outputs, mini-pro includes a dedicated USB recording port. Simply connect a portable drive and record directly from mini-pro.

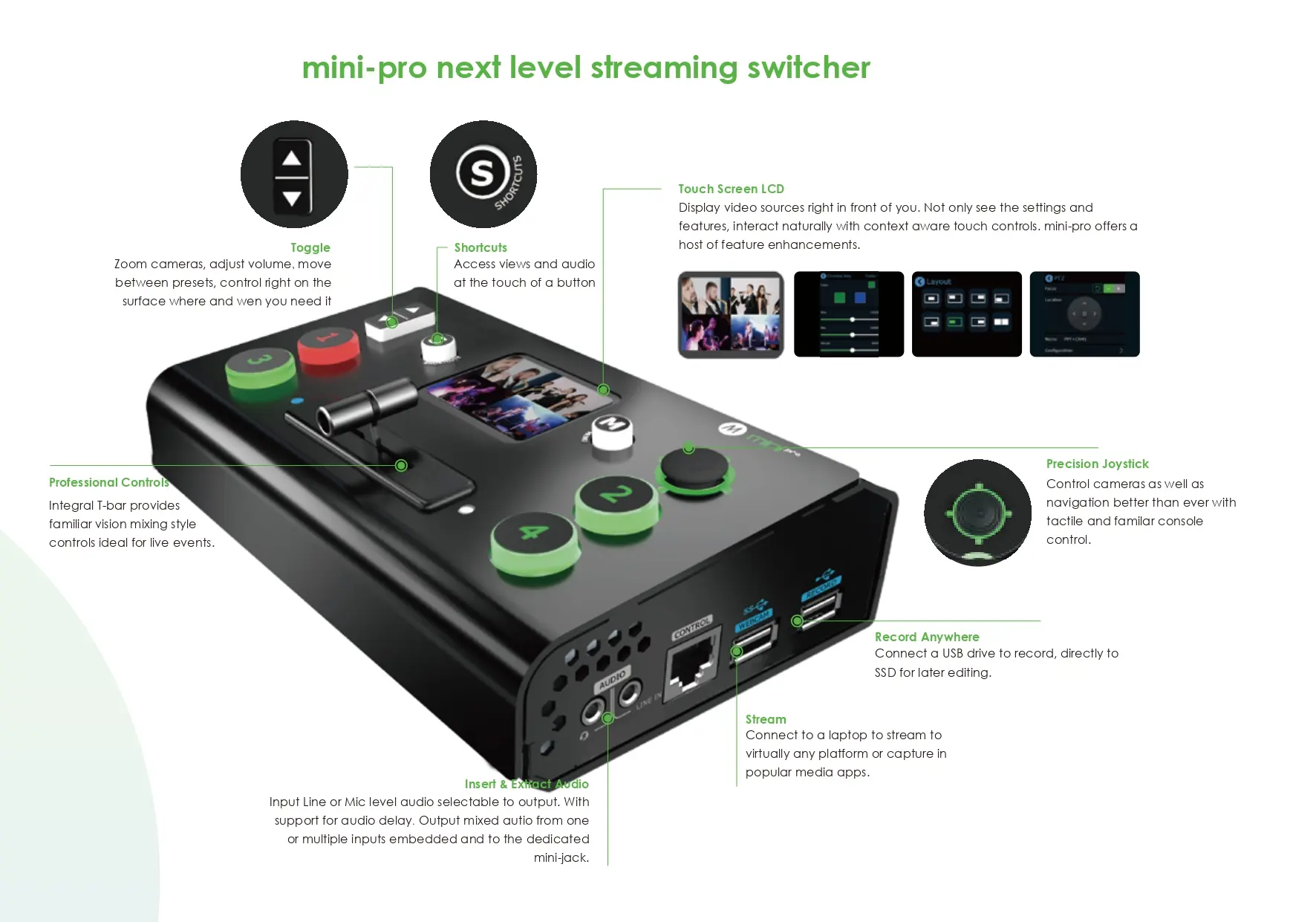

The exclusive integral display not only shows video preview, but is touch enabled for natural operation of features and settings. Remote control is available via free companion apps for
laptops and mobile devices too.Â

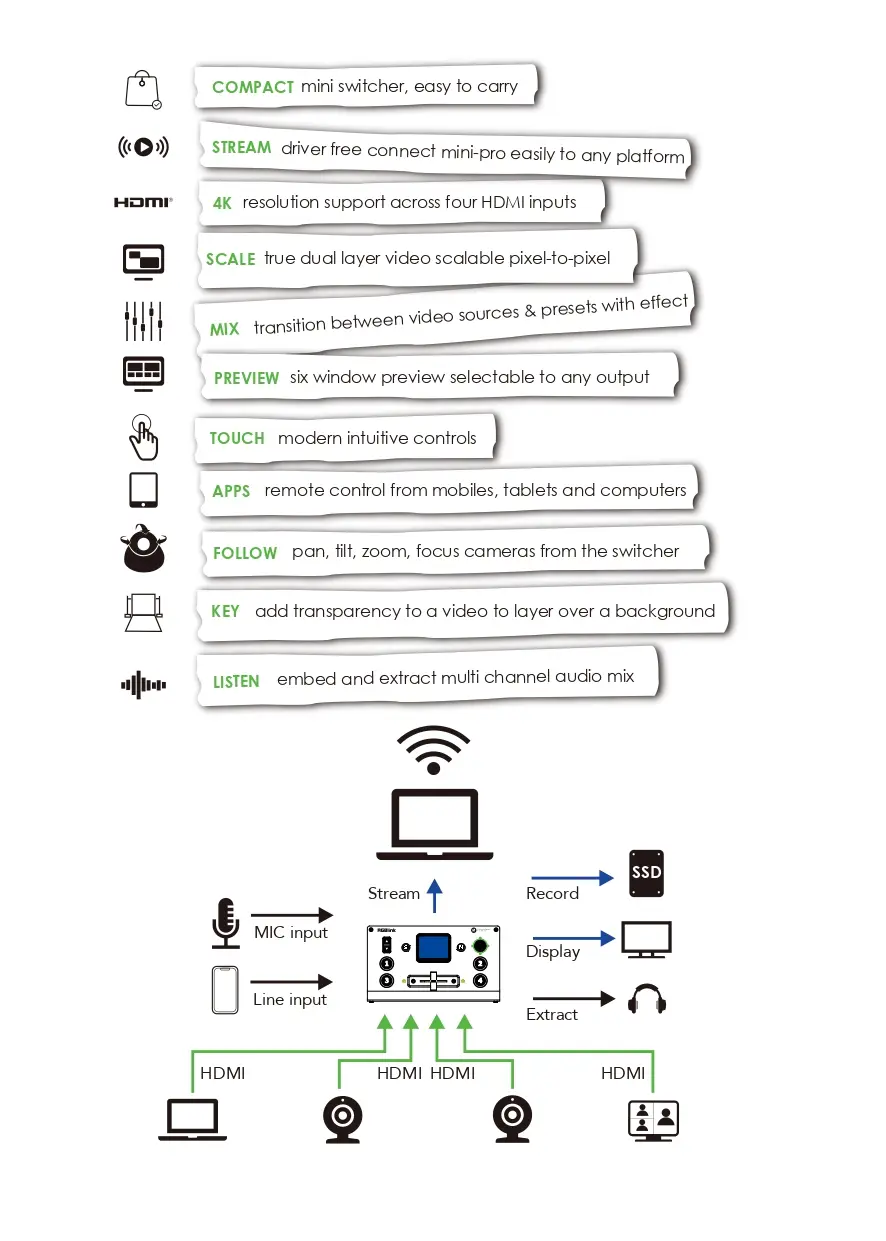

mini-pro is packed with features including dynamic output control, preview multi-view, picture in picture, Chroma Key, video transitions, on board PTZ camera controls and more.

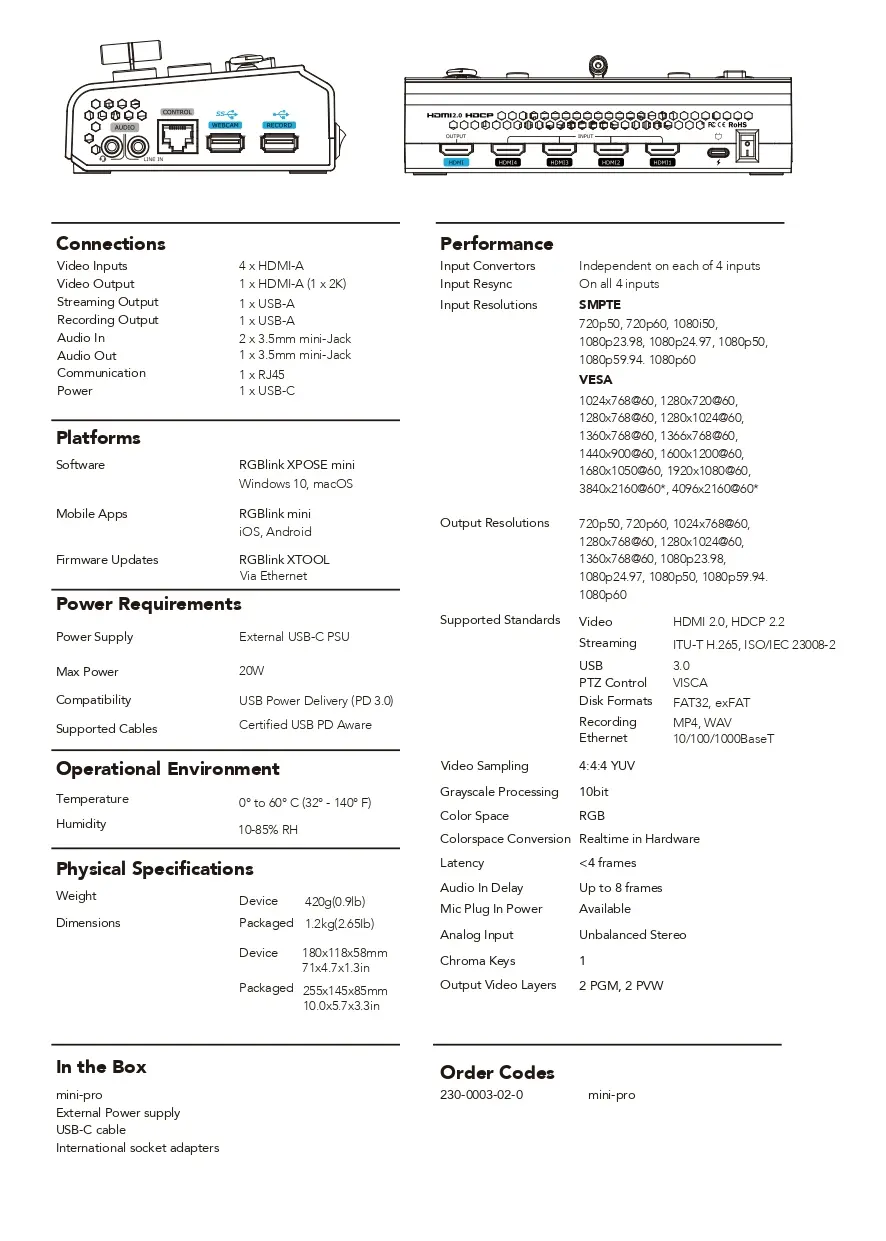

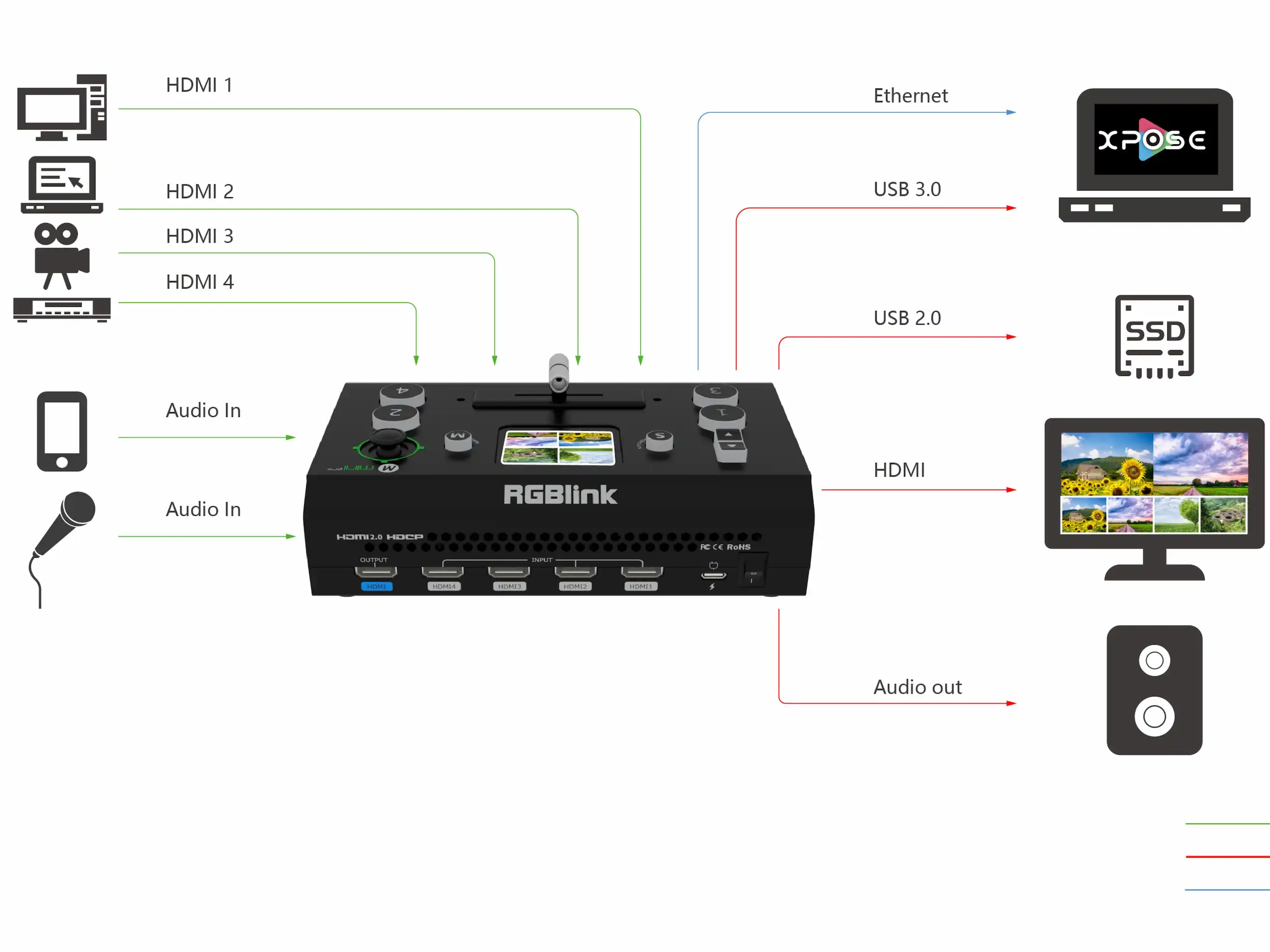

| Connectors | Input | HDMI 4K | 4×HDMI-A |  |  |  |  |  |
| Output | HDMI 2K | 1×HDMI-A |  |  |  |  |  | |
|  | Streaming | 1×USB TypeA |  |  |  |  |  | |
|  | Recording | 1×USB TypeA |  |  |  |  |  | |
| Audio | In | 2×3.5mm Stereo Jack |  |  |  |  |  | |
|  | Out | 1×3.5mm Stereo Jack |  |  |  |  |  | |
|  | Communication | LAN | 1×RJ45 |  |  |  |  |  |
|  | Power |  | 1×USB-C |  |  |  |  |  |
| Performance | Input Resolutions | HDMI |  |  |  |  |  |  |
| Â | SMPTE | 720p@50/60Â |1080i@50Â |Â 1080p@24/30/50/60Â Â |2160p@60 | ||||||
|  | VESA | 1024×768@60 | 1280×720@60 | 1280×768@60 | 1280×800@60  | 1280×1024@60 | | ||||||
|  |  | 1360×768@60 | 1366×768@60 | 1440×900@60 | 1600×1200@60 | 1680×1050@60 | | ||||||
|  |  | 1920×1080@60 | 1920×1200@60 | 3840×2160@60 | 4096×2160@60 | ||||||
|  | Output Resolutions | HDMI |  |  |  |  |  |  |
| Â | Â | SMPTE | 720p@50/60Â |Â 1080p@24/25/30/50/60Â | |||||
|  |  | VESA | 1024×768@60 | 1280×720@50/60 | 1280×768@60 | 1280×1024@60 | 1360×768@60 | | |||||
|  |  |  | 1920×1080@24/25/30/50/60 | |||||
| Â | Â | USB | Â | Â | Â | Â | Â | Â |
|  |  |  | 1024×768@60 | 1280×720@50/60 | 1280×768@60 | 1280×1024@60 | 1360×768@60 | | |||||
|  |  |  | 1920×1080@24/25/30/50/60 | |||||
|  | Supported Standards | HDMI | 2.0 |  |  |  |  |  |
| Â | USB | 3.0 | Â | Â | Â | Â | Â | |
| Â | H.265 | ITU-TÂ H.265/Â ISO/IECÂ 23008-2 | Â | Â | Â | Â | ||
|  | Supported Protocol | PTZ | VISCA |  |  |  |  |  |
|  | Video Formats | HDMI 2.0 | HDCP 2.2 |  |  |  |  |  | |
|  | Streaming Formats | ITU-T H.265 | ISO/IEC 23008-2 |  |  |  |  |  | |
|  | Disk Formats | FAT32(≤32 GB) | exFAT(64GB~2T) |  |  |  |  |  | |
|  | Recording Formats | MP4 | WAV |  |  |  |  |  | |
|  | Color Space | RGB |  |  |  |  |  |  |
|  | Video Sampling | 4:4:4 YUV |  |  |  |  |  |  |
| Â | Latency | <4Â frames | Â | Â | Â | Â | Â | Â |
|  | Line In Delay | up to 8 frames |  |  |  |  |  | |
| Power | Input Voltage | DC 12V/1.5A (via plug pack supplied) |  |  |  |  |  | |
| Max Power | 20W |  |  |  |  |  |  | |
| Compatibility | USB Power Delivery (PD) 3.0 |  |  |  |  |  | ||
| Supported Cables | Certified USB PD Aware |  |  |  |  |  |  | |
| Environment | Temperature | 0℃~60℃ |  |  |  |  |  | |
| Humidity | 10%~85% | Â | Â | Â | Â | Â | ||
| Physical | Weight | Net | 0.42kg | Â | Â | Â | Â | Â |
| Package | 1.20kg | Â | Â | Â | Â | Â | ||
| Dimension | Net | 180mm×118.3mm×58.4mm |  |  |  |  | ||
| Package | 255mm×145mm×85mm | |||||||
